Changing which columns are shown in a grid, column order and default grid sort.
Overview
Grids must be customized for each user. It is not currently possible to share grid layouts between users.
The following grids in Mingo can be customized. You can choose which columns to show, the order of the columns and how the grid is sorted.
- Production Run: Work Queue
- Operator Screen: Work Queue
- Administration: Active Production Runs
- Production History: Production Runs
- Operator Screen: Events
- Schedule Bulk Edit
- Facilities
- Departments
- Machines/Cells
- Resource Groups
- Parts
- Machine Events
- Process Data
- Custom Objects
A user must have the Grid Layout entitlement turned on for their security group to edit the grids.
Changing the Grid Settings
- Navigate to the grid you want to modify

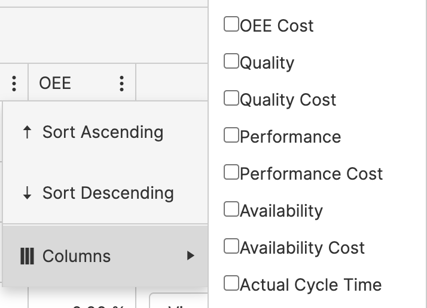

- Change the columns shown by clicking on the
icon on any of the columns - Under the column's menu, check the columns you want to show or uncheck any column you want to hide.
- Drag a column to change the display order
- Click Layout -> Save to save the layout for that grid
Restating a Grid
- Navigate to the grid you want to reset
- Click the layout button and click Reset
